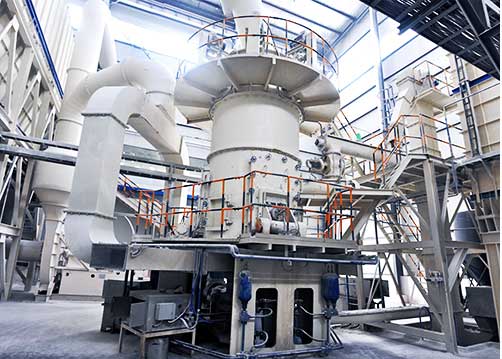

Based on the LM vertical mill, introduce modern ultra-fine vertical mill technology.
Equipped with Multiple Powder Separator，roller grinding and rolling device;
It breaks the bottleneck of ultrafine powder processing capacity.
The LUM series ultra-fine vertical mill is a combination of Liming Heavy Industry's many
years of experience in the development &manufacturing of various mills based on the LM
series vertical mill and absorbing the related technologies of modern ultra-fine vertical
mills.
It is a professional equipment for the ultra-fine milling industry that integrates
ultra-fine grinding, classification and conveyer, Its technical indicators like
technological parameters, mechanical properties and finished product powder quality can meet
customer requirement sucessfully.
Adopting the principle of material layer grinding, The finished product has less
repeated grinding , less iron content, high whiteness and clarity because material
staying short time inside mill；
Special designing grinding curve of the roller sleeve and liner can get 650 meshes at
one time, even to 3250 mesh by using
Equipped with mechanical and electronic limit devices to avoid destructive impact and
vibration;Adopt PLC/DCS automatic control roller grinding pressure control mode, the
control is accurate, without manual operation;
Equipped with grinding roller lubrication station, it can fully lubricate and prevent
excessive oil leakage.
Adopting the principle of multiple powder selection, all rotors can be adjusted by
frequency conversion, which can effectively separate coarse powder and fine powder, and
the separation fineness can be as high as 2μm;
The equipment is energy-saving and the technology is reliable; the quality is stable and
the reproducibility is high when producing many varieties.
The grinding roller does not directly contact with the mill stone, so it has less wear
and long life;
With hydraulic roller turning-out device, the grinding roller can be turned out of the
machine completely to ensure enough maintenance space, which replace and repair
easy-wear parts easily in a short time；
Less vibration, lower noise, better overall sealing, no dust overflow;

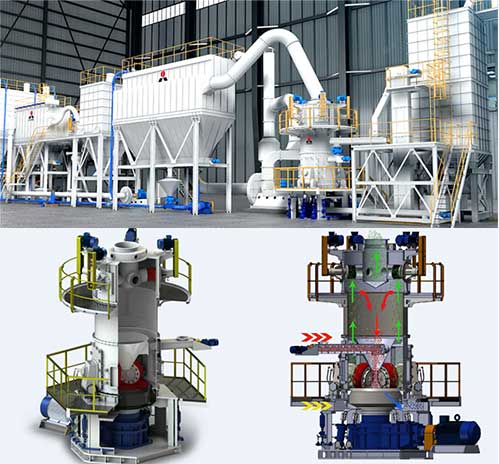

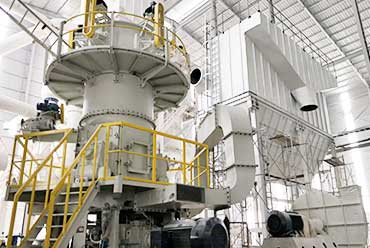

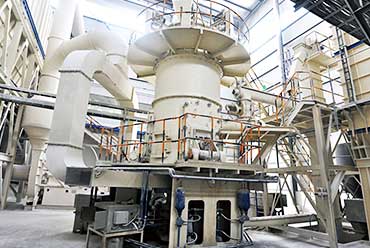

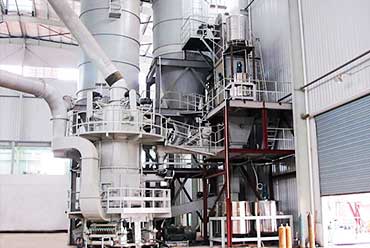

LUM ultrafine vertical mill consists of motor, reducer, grinding rollers, millstone , pressure device, powder concentrator, main frame and oil station and so on.
The main motor drives the millstone to rotate through the reducer, and at the same time, the
wind enters the grinder from the air inlet. The material falls through the screw feeder's
discharge port and falls in the center of the millstone.When grinding the roller table area,
it is crushed by the grinding roller, and the bulk material is crushed directly, and the
fine-grained material is extruded to form a material bed for inter-particle crushing. The
crushed material continues to move toward the edge of the millstone until it is taken away
by the strong air flow at the wind ring, and the larger granular material falls back onto
the millstone to continue crushing.
When the material in the air flow passes through the upper separator, the rotor Under the
action of the blades, the coarse particles are returned to the millstone for grinding.
Qualified fine powder is discharged with the air flow and collected by the system's powder
collector. The collected powder is the product of the ultra-fine vertical grinding.When the
iron and other debris mixed with the material move to the edge of the millstone with the
material, they cannot be blown up by the wind due to their own weight.
| Model | LUM1125X | LUM1232X | LUM1436X |
|---|---|---|---|
| Intermediate diameter of the millstone(mm) | 1100 | 1200 | 1400 |
| Quantity of the rollers(piece) | 3 | 3 | 3 |
| Moisture of the feeding material | <3% | <3% | <3% |
| Capacity(t/h) | 5~14 | 7~16 | 9~18 |
| Fineness（μm） | Generally in 38-20μm, the finest can reach 2μm | ||
| Power of main motor(kw) | 250 | 315 | 355--410 |
| Power of multiple powder concentrator&quantity | 15 KWx6 | 15 KWx8 | 18.5 KWx8 |
High whiteness
Narrow particle size
Fine particle size
Good
