Capacity 3-25t/h
Output Fineness 400-3250mesh
Processed Materials:calcium carbonate, limestone, calcite, etc.

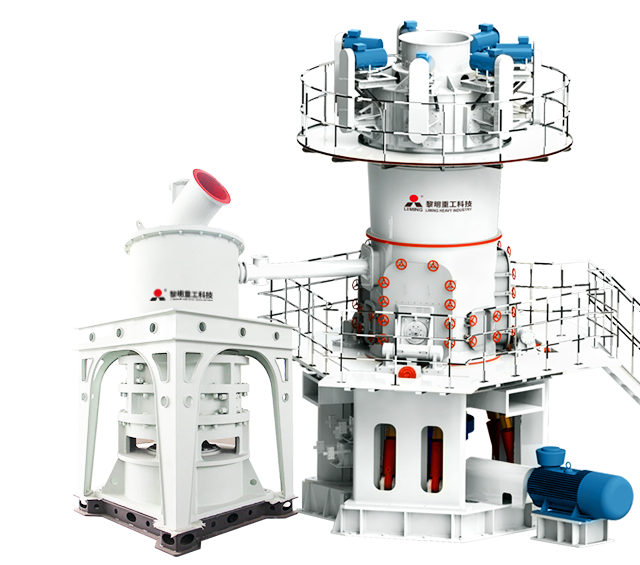

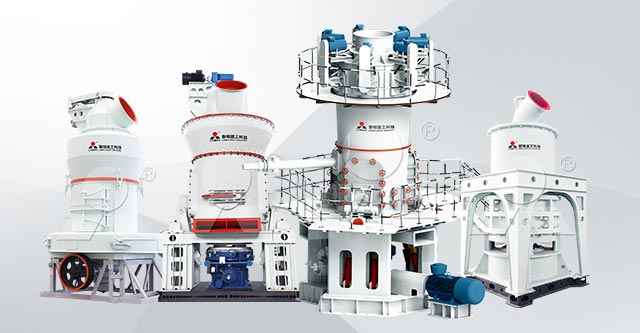

LUM series ultrafine vertical roller mill and MW series micro powder mill focus on ultrafine grinding within the range of 400-3250 mesh, the fineness is adjustable and controllable. They are widely used for grinding calcium carbonate, limestone, calcite, marble, dolomite, barite, talc, bentonite, quartz, gypsum, etc. And the finished powder quality fully meets the needs of users.
Hot Sale Products
Best choice for ultrafine powder processing
-
-

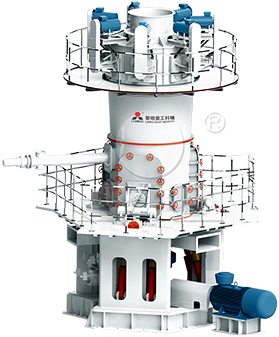

LUM Ultrafine Vertical Mill
Capacity:3-18t/h Input size: <10mm Fineness:200-3000mesh
Parameters of LUM Ultrafine Vertical Mill
| Model | LUM15-3X | LUM16-3X | LUM17-3 |
| Main Motor Power (kw) | 220-280 | 315-400 | 355-450 |
| Less than 2μm=30% Capacity (t/h) |
9-12 | 12-16 | 14-18 |
| Less than 2μm=45% Capacity (t/h) |
5.5-7.5 | 7-9 | 10-12 |
| Less than 2μm=60% Capacity (t/h) |
3-4 | / | / |
-

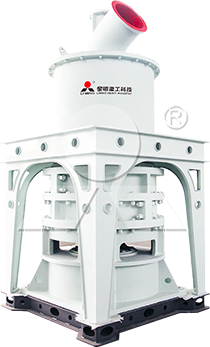

MW Micro
Capacity:3-25t/h Input size: ≤20mm Fineness:325-3250mesh
Powder Mill
-
Parameters of MW Micro Powder Mill
| Model | MW880 | MW980 | MW1080 | MW1280 | MW1680 |
| Input Size (mm) | ＜10 | ＜10 | ＜10 | ＜15 | ＜20 |
| Capacity (t/h) | 0.5-5 | 0.6-6.5 | 1-8.5 | 1.5-11.2 | 5-25 |
| Main Motor Power (kw) |
55-75 | 90 | 110-132 | 185-20 | 315 |
| Separator Power (kw) |
18.5 | 22 | 30-37 | 37-60 | 92.5 |
Product Advantages
Energy saving, high efficient and intelligent
Project Cases
Exported to More Than 170 Countries

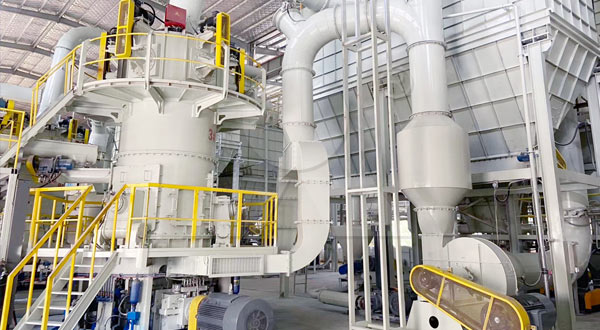

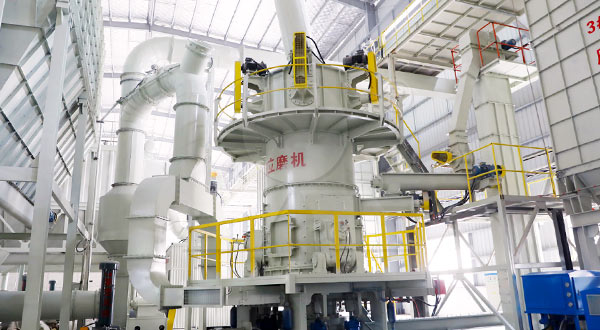

Calcite Ultrafine Grinding Mill in Malaysia
Capacity: 20t/h Output Fineness: 800mesh
Calcium Carbonate Superfine Grinding Mill in Egypt
Capacity: 15t/h Output Fineness: 1250mesh

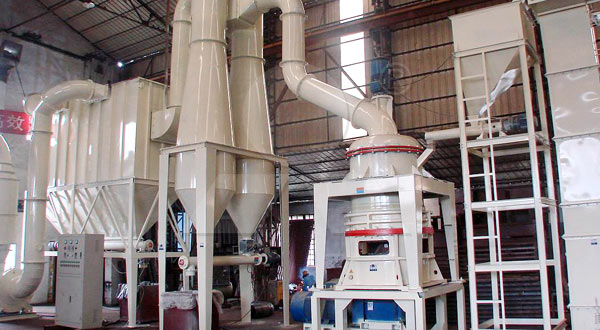

Limestone Micro Powder Mill in Vietnam
Capacity: 5t/h Output Fineness: 2500mesh

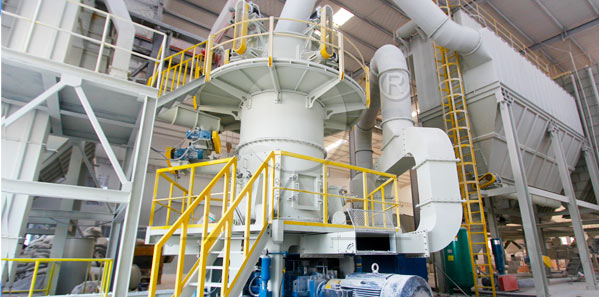

More Cases
