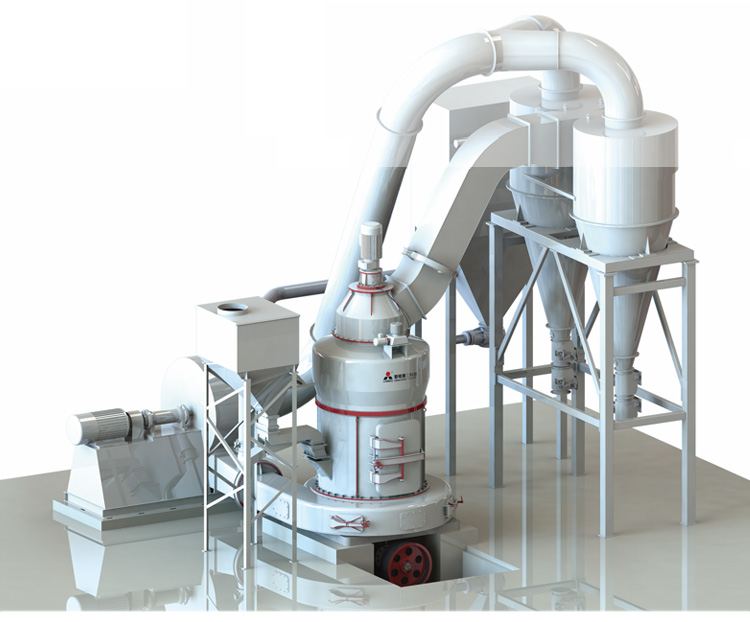

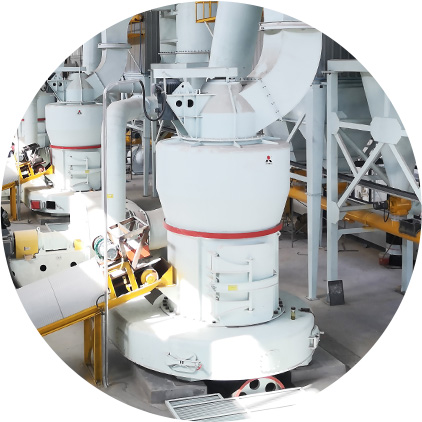

Raymond mill
MTW European Type Raymond mill, this model adopts a number of new patented technologies such as bevel gear integral transmission, internal thin oil lubrication system, arc-shaped air duct, etc with high grinding efficiency and large output, it is widely used in power plant desulfurization, large- scale Non-metallic ore milling and building materials and chemical industries.
Capacity:
up to 60TPH
Fineness:
200-400mesh
Processing materials:
【limestone】,【calcite】,【dolomite】,【barite】,【talc】 【calcium carbonate】,【gypsum】,【bentonite】etc.
performance advantage
High efficiency and high production capacity
Mature technology and stable Performance
Low cost, less maintenance
conomical and reliable
Scientific allocation
Environmental protection
low energy consumption
Specifications
| Model | Main engine | Maximum feed | Processing |
| power(KW) | size(mm) | capacity(t/h) | |
| MTW115G | 55-75 | 30 | 3-12 |
| MTW145G | 110-132 | 35 | 6-23 |
| MRN158 | 132-160 | 38 | 8-30 |
| MTW178G | 185-200 | 40 | 10-38 |
| MTW198G | 220-250 | 40 | 15-46 |
| MTW218G | 280-315 | 50 | 18-55 |
Remark: Fineness of finished product (mm):
1.6-0.045 up to 0.038 in fineness
Working Principle
The system of MTW grinding line consists of grinding mill separator, air blower jaw crusher, vibrating feeder, hopper dust collector, pipe, powder collectorelectric cabinet, motors etc. Big lump materials are crushed to required size by jaw crusher. Then through the variable-frequency belt feeder, it is evenly and continuously fed into the mill to be ground. Materials are to be ground between ring and rollers, and move up with the air flow, those particles which cannot pass the separator will fall down and be ground again, while others will be collected as finished product. Air flow passing through separator will go to the air blower for recycling, it's a closed system. The system is equipped with the pulse dust collector which complies with national environmental protection standards.
Related Case

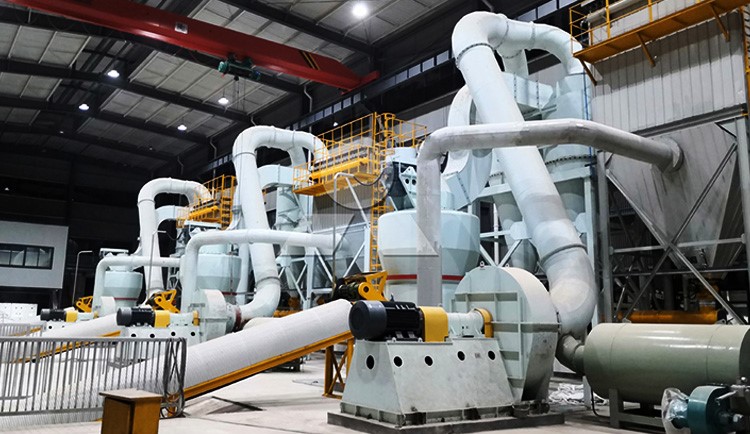

20TPH Limestone Grinding Project
Equipment: 2 sets of MTW178 European Type Grinding Mill
Material: Limestone
Output size: 200 mesh
Capacity: 20T/H

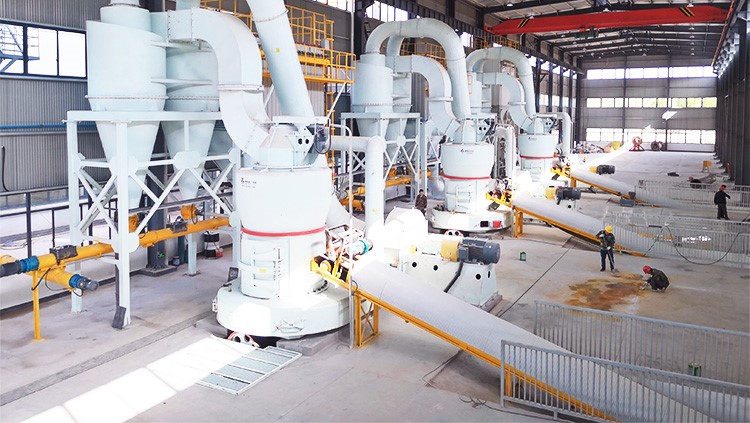

15tph bentonite grinding line
Equipment: 3 sets of MTW178G
Material: bentonite
Output size: 180-200 mesh
Capacity: 15T/H

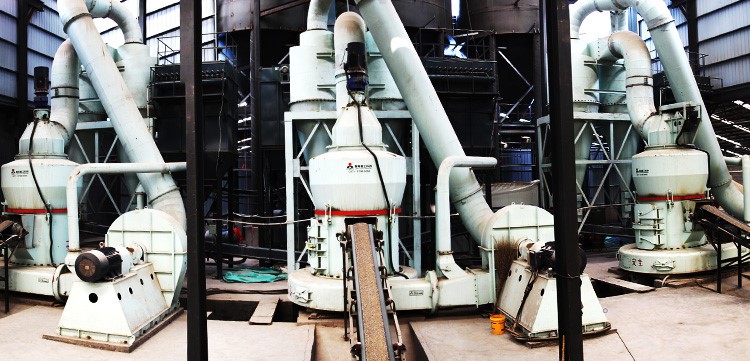

40tph MTW215 Grinding Plant for dolomite processing
Equipment: MTW215 Grinding Plant
Material: dolomite
Output size: 0.1-0.6mm
Capacity: 40T/H

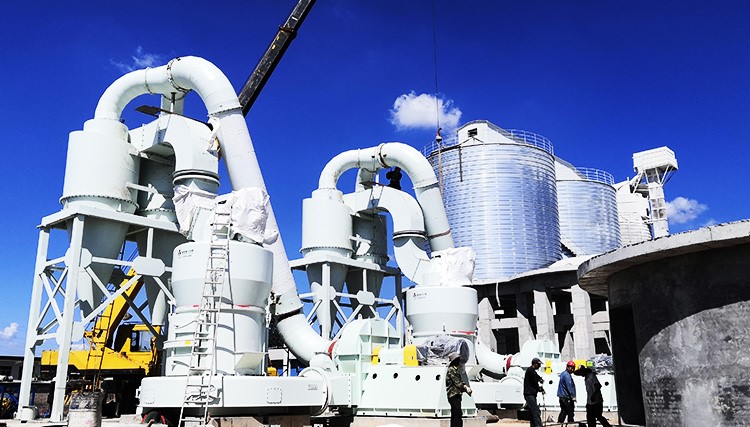

3000,000TYP MTW138 Grinding Plant for heavy calcium
Equipment: 40 sets of MTW Grinding Plant, Jaw Crusher
Material: calcium carbonate
Output size: 325 mesh
Capacity: 3000,000TYP

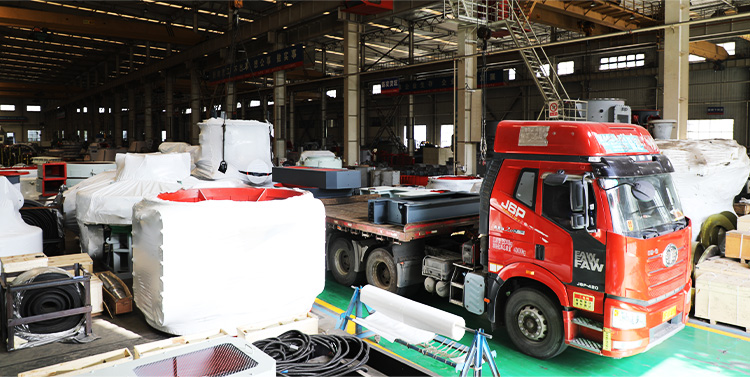

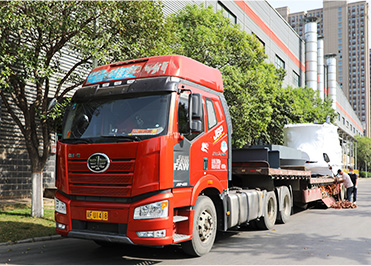

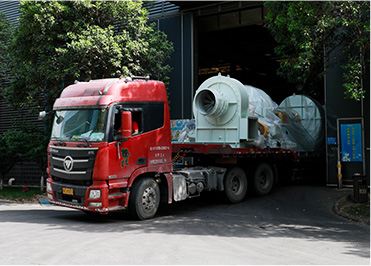

Delivery Site
