Provide an overall solution
for grinding equipment
Capacity:3-80TPH Fineness:20-1200Mesh
Product Description
There are many kinds of grinding mill in Liming Heavy Industry, including vertical roller mill, trapezium mill, micro powder grinding mill and so on. Besides high quality equipment, the company will provide sincere service such as Engineering Procurement Construction project.

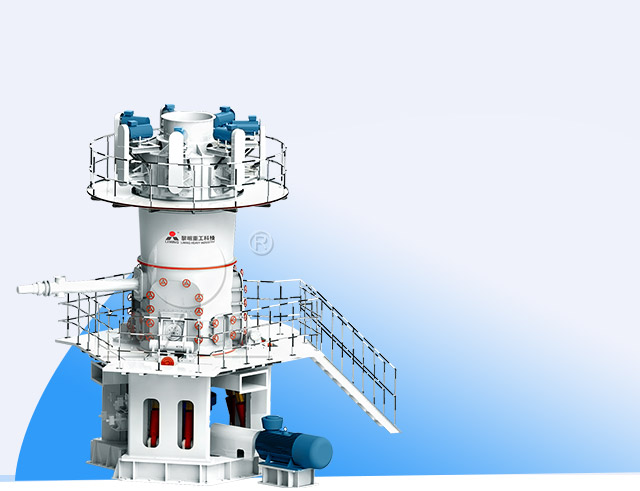

Superfine vertical Mill
Capacity： 5-18T/H
Fineness： up to 3000mesh
Performance Advantages:
- 1.Simple and reliable operation.
- 2.High grinding efficiency,Stable product quality.
- 3.Low overall investment cost,Energy efficient.
- 4.Grinding roller bearings are lubricated with forced thin oil, longer bearing life.
Specifications:
| Model | Less than 2μm=30% output (t/h) |
Less than 2μm=45% output (t/h) |
Less than 2μm=60% output (t/h) |
Main Motor power (KW) |
|---|---|---|---|---|
| LUM15-3X | 9-12 | 5.5-7.5 | 3-4 | 220-280 |
| LUM16-3X | 12-16 | 7-9 | / | 315-400 |
| LUM17-3X | 14-18 | 10-12 | / | 355-450 |

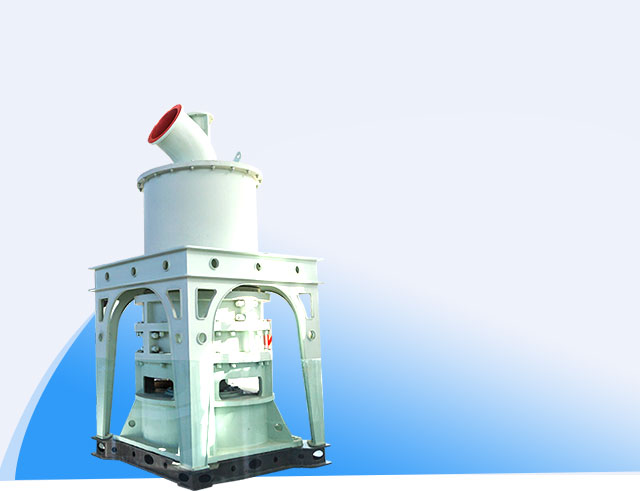

MW Micro Powder Mill
Capacity： 0.5-12T/H
Fineness： 5-100μm
Performance Advantages:
- 1.Safe, reliable and environmental protection.
- 2.Low investment and high efficiency.
- 3.ow loss and high fineness.
Specifications:
| Model | Max. Feeding | Output fineness | Capacity(t/h) | Main Motor |
|---|---|---|---|---|
| Size(mm) | (mm) | power(KW) | ||
| MW880 | ≤10 | 45-3μm(325-3250mesh) | 0.5-5 | 75 |
| MW980 | ≤10 | 0.6-0.65 | 2*45 | |
| MW1080 | ≤10 | 1-8.5 | 132 | |
| MW1280 | ≤15 | 1.5-12 | 185 | |
| MW1680 | ≤20 | 3.8-30 | 315 |

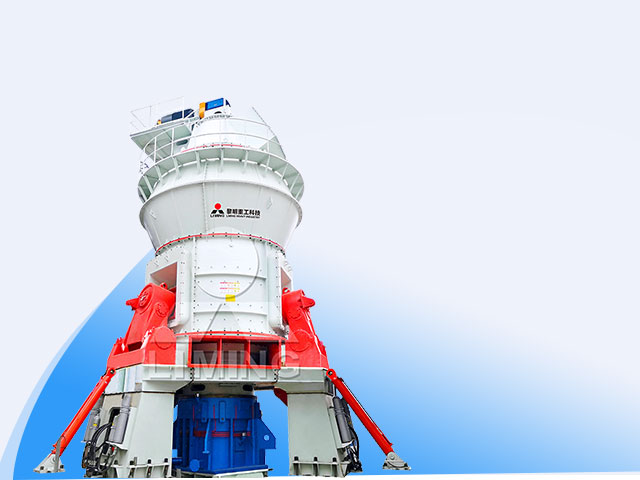

Vertical Roller Mill
Capacity： 13-70T/H
Fineness： 170~45(micron)
Performance Advantages:
- 1.High grinding efficiency, Stable product quality.
- 2.Simple and reliable operation.
- 3.Easy maintenance and low operating cost.
- 4.Energy efficient, Environmental protection.
Specifications:
| Model | Max Input Size | Fineness | Capacity(t/h) | Main Motor |
|---|---|---|---|---|
| (mm) | (micron) | (kw) | ||
| LM130N | <38 | 170-45 | 7-11 | 200 |
| LM150N | <40 | 170-45 | 9-13 | 280 |
| LM170N | <42 | 170-45 | 11-15 | 400 |
| LM190N | <45 | 170-45 | 14-20 | 500 |
| LM220N | <50 | 170-45 | 22-26 | 800 |
| LM240N | <55 | 170-45 | 27-35 | 900 |
| LM280N | <58 | 170-45 | 48-55 | 1120 |
| LM340N | <62 | 170-45 | 65-89 | 1800 |
| LM370N | <65 | 170-45 | 90-100 | 2240 |

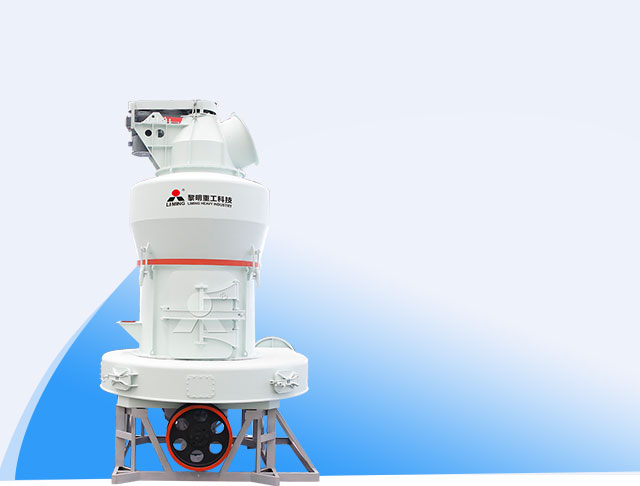

MTW Trapezium Mill
Capacity： 13-50T/H
Fineness： 1.6-0.045μm
Performance Advantages:
- 1.Mature technology and stable Performance.
- 2.Scientific allocation, low energy consumption.
- 3.Low cost, less maintenance.
- 4.Environmental protection.
Specifications:
| Model | Max. Feeding | Output fineness | Capacity(t/h) | Main Motor |
|---|---|---|---|---|
| Size(mm) | (mm) | power(KW) | ||
| MTW115G | 30 | 1.6-0.045 up to 0.038 | 3-12 | 55-75 |
| MTW145G | 35 | 6-23 | 110-132 | |
| MTW178G | 40 | 10-38 | 185-200 | |
| MTW198G | 40 | 15-42 | 220-250 | |
| MTW218G | 50 | 18-55 | 280-315 |
Customer Case

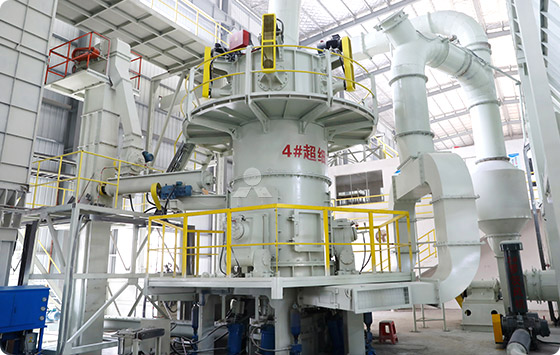

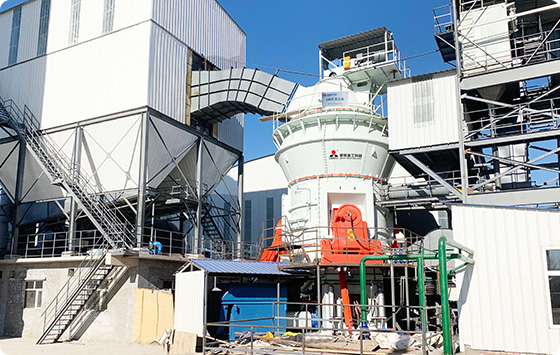

Calcium carbonate ultrafine vertical mill
Super fine powder
intelligent control
800 mesh kaolin production line
d97≤5μm
Environmental friendly

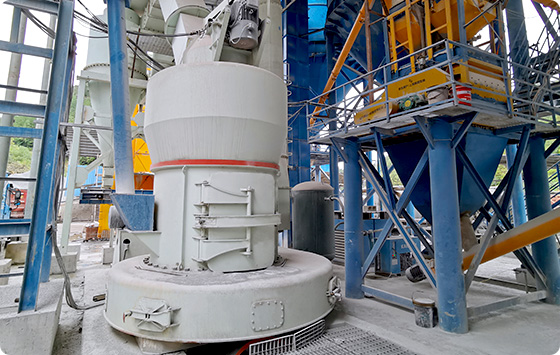

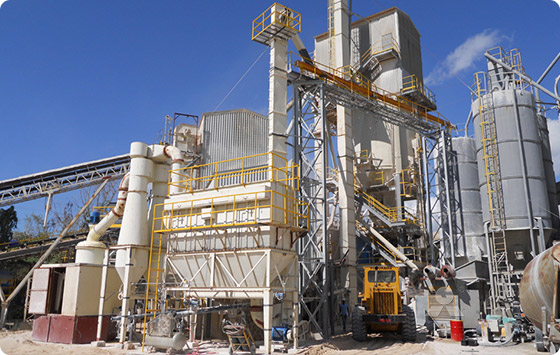

17TPH MTW178 Limestone Grinding Mill
20% power savings
5% higher recovery
Vertical Mill, Process slag, 325mesh
Runs stably
Little loss
