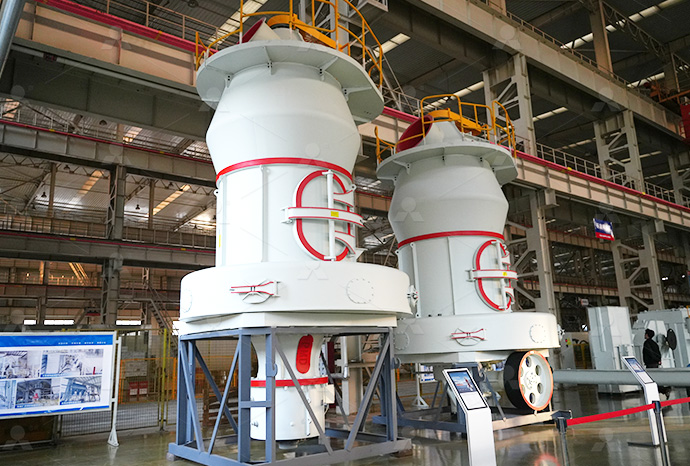

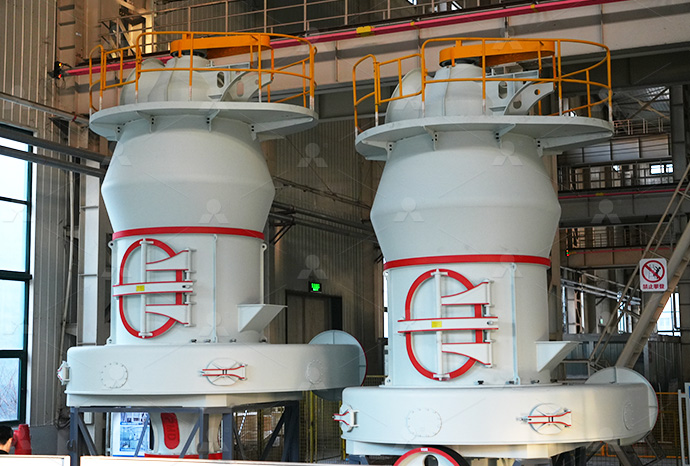

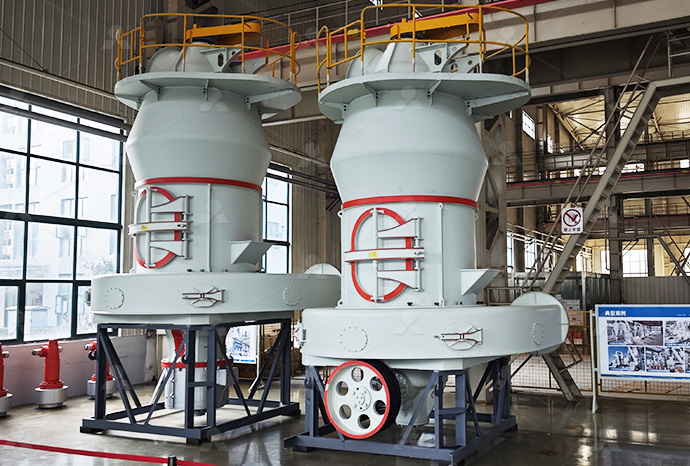

Intelligent Oil-Lubricated Pendulum Mill (MTW6X)
Intelligent Oil-Lubricated Pendulum Mill (MTW6X)
Intelligent Oil-Lubricated Pendulum Mill (MTW6X)

Intelligent Oil-Lubricated Pendulum Mill (MTW6X)

The MTW6X sixth-generation all-thin-oil lubricated intelligent European-style grinding mill is based on the mature technology of the MTW European-style grinding mill, the fifth-generation best-selling product of Liming Heavy Industry. It closely focuses on market demand and continuously invests in research and development.

Input Size

30-60 mm

Capacity

3-80 t/h

Applications:

It is suitable for grinding various non-flammable and non-explosive materials with a Mohs hardness below 7 and a water content of less than 6% in the fields of building materials, metallurgy, electric power, chemical industry, new energy, new materials, large and medium-sized non-metallic mineral powder making, limestone, calcite, dolomite, marble, gypsum, quicklime, heavy calcium carbonate powder making, environmentally friendly desulfurized limestone powder making, magnetic rare earth materials, bentonite, kaolin, bauxite, barite, clean coal powder preparation, petroleum coke powder making, etc.

Processed Materials:

  • Kaolin mill

    Kaolin mill

  • Lead-Zinc Ore Grinding Mill

    Lead-Zinc Ore Grinding Mill

  • Gold Ore Grinding Mill

    Gold Ore Grinding Mill

  • Calcium Carbonate grinding & processing

    Calcium Carbonate grinding & processing

Limestone Calcium carbonate Gypsum Barite Calcite Dolomite

1.Bevel gear integral transmission

Continuing the characteristics of the MTW European version of the grinding mill with bevel gear integral transmission, it has fewer transmission chains and more precise transmission ratios.

2.Full thin oil lubrication, no downtime maintenance required

The main engine system and grinding roller system are all lubricated with thin oil, which can avoid downtime maintenance.

3.The new analyzer has high powder selection efficiency

The new analyzer appearance and structure have better sealing, high air flow speed, high powder selection efficiency and precision;

4.High-performance fan reduces energy consumption by 10%

The system is equipped with a new high-performance fan, which improves aerodynamic efficiency by 15% and saves 8-10% of electricity compared to traditional fans.

5.Condition monitoring ensures stable finished powder

Multi-point condition monitoring provides early warnings, ensuring stable operation and higher quality finished powder, enhancing market competitiveness.

6.Mobile APP remote control

Equipped with an intelligent control system, it collects and analyzes data in real time and enables one-click control via the mobile phone APP.

Working Principle

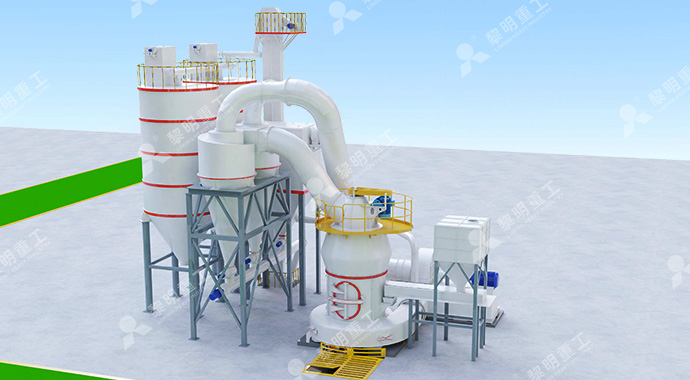

After crushing, the qualified material is fed evenly and quantitatively into the main grinding chamber by a variable frequency belt feeder for grinding. The ground material is then sent by airflow from a blower to a classifier for grading. Under the action of the classifier, material that does not meet the fineness requirements falls back into the grinding chamber for regrinding, while the qualified material is carried by the airflow through a pipeline into a cyclone dust collector for separation and collection. The collected material is then discharged as the finished powder through a discharge device. The separated airflow returns to the blower through the return air duct at the top of the cyclone dust collector. The system operates under negative pressure and is equipped with a pulse dust collector, meeting national environmental protection standards.

Intelligent Oil-Lubricated Pendulum Mill (MTW6X)

FAQ

1.

Which materials is the MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill suitable for processing?

The MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill is ideal for non-flammable, non-explosive materials with Mohs hardness below 7 and moisture under 6%, such as limestone, calcite, dolomite, marble, gypsum, quicklime, heavy calcium carbonate, desulfurization limestone, bentonite, kaolin, bauxite, barite, clean coal and petroleum coke, across building, metallurgy, power, chemical and new-material industries.

2.

What intelligent functions does the MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill support?

The MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill features an intelligent control system with multi-point condition monitoring and one-click mobile APP remote control. It collects and analyzes vibration, temperature and current data in real time, issuing early warnings on anomalies, while operators can start, stop and adjust parameters via phone, enabling near unattended operation.

3.

What is the finished product fineness range of the MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill?

The MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill offers continuously adjustable fineness from 1.6 mm down to 0.045 mm, with the finest output reaching 0.038 mm (about 400 mesh). Its new-type analyzer features higher air velocity and better sealing, greatly improving powder-selection precision and efficiency while stably producing powders that meet diverse industrial granularity requirements.

4.

What does daily maintenance of the MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill mainly include?

Daily MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill maintenance centers on the thin-oil system: check oil level, color, temperature and pressure, and refill online on schedule; clean pulse-collector bags and pipeline dust; inspect wear parts like rollers, rings and scrapers; review vibration and current trends via APP. Thin-oil design lets most maintenance be done online without frequent stops.

5.

Does the MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill thin-oil lubrication require shutdown maintenance?

No. The MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill uses full thin-oil lubrication on both main unit and rollers with online lubrication and monitoring, allowing refilling and inspection during operation and eliminating the downtime needed for traditional grease. This raises running rate and cuts unplanned stops, ideal for continuous large-scale powder lines.

6.

How is the new MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill analyzer improved over the old version?

The MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill is equipped with a redesigned analyzer featuring better sealing and higher air velocity, which markedly improves selection efficiency and classification precision. Faster collection of qualified fine powder and prompt return of coarse particles ensure uniform product size, reduce over-grinding and energy use, and raise the market value of the final powder.
