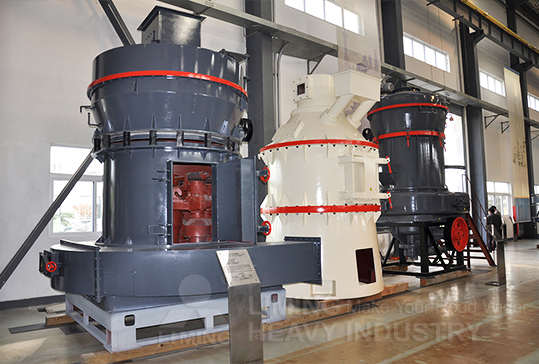

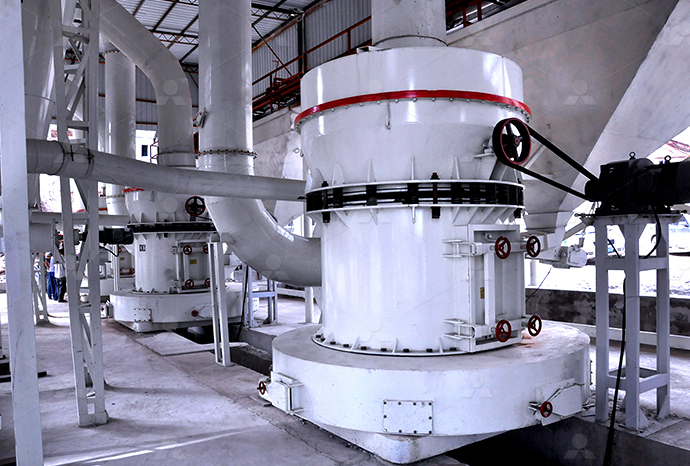

TGM Super Pressure Trapezium Mill a new type, high efficiency, energy-saving high-fine powder equipment, which adopts five proprietary technologies. Innovative grinding roller and ring design, high capacity, low energy consumption, better for the environment. Applied to various non-flammable and non-explosive materials under 9 moth hardness and less than 10% humidity. High density and high precision impeller device, capacity increased by 50% and fineness up to 100mm.
Input Size
25-35mm
Capacity
3-22T/H
Metallurgy, building materials, chemicals, mining, steel, highways, water conservancy and hydropower, refractories and other industries.
Bentonite grinding and processing
Stone Paper Grinding Mill
Calcite mill
Coal Gangue Mill
Marble Dolomite Silica Stone Paper Carbon Black Slag
1.
High consumption-reducing flexible connections, reduces vibration and noise, improve the service life of equipment.
2.
Innovative grinding roller and ring design, reduce the speed of material decline, extending the material rolling time and improve the finished product fineness and yield.
3.
Efficient powder sorting device, the capacity increased by 10% -15% under the same power.
Working Principle

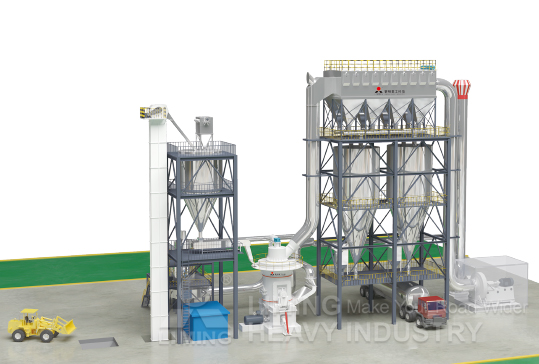

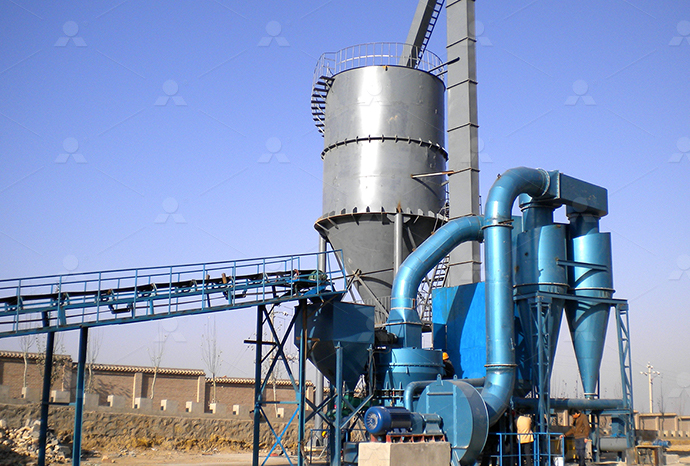

Large materials are crushed by jaw crusher to the needed sizes firstly, then the materials are elevated to storage hopper by bucket elevator, third, the materials are fed into the grinding chamber for grinding by vibrating feeder equably and continuously.The powder after grinding goes upwards together with the airflow, after separating by powder separator, those which can meet the fineness requirement enters into the cyclone powder collector through pipe together with the airflow, and then discharged from the discharge valve as final products. The airflow is sucked into centrifugal blower through wind recycling pipe at the upper part of cyclone powder collector.The mainframe is driven by the speed reducer through the central axis in the mill.
The TGM Super Pressure Trapezium Mill suits medium-scale, multi-variety non-mineral dry grinding with high cost-performance, small footprint and flexible changeover; the LM vertical mill better fits large-scale single-variety materials needing drying. The maker advises by output and material; both beat Ball Mills.
Sequence: start dust collection and return air, then the fan, then the classifier and main unit; after the main unit runs smoothly unloaded, feed evenly. Shutdown reverses the order—stop feeding, empty the chamber, then stop main unit, classifier and fan.
The maker offers installation guidance, training, remote diagnosis and follow-ups, with key wear parts stocked for fast shipment. An annual maintenance agreement lets the maker track data and warn early, securing continuous stable operation.
As a large machine, the TGM Super Pressure Trapezium Mill needs a reinforced-concrete foundation per the maker's load and bolt layout, with proper leveling and damping. After placing main unit, classifier, collector and fan, align and bolt precisely; have the maker commission it before production.
The TGM Super Pressure Trapezium Mill requires feed Mohs hardness below 7 and moisture under 6%. Excess hardness accelerates roller and ring wear; too much moisture causes sticking, blockage and lower selection efficiency. Pre-dry after crushing to a suitable moisture level.
The TGM trapezoidal mill adopts a compact vertical structure, occupying a smaller overall space than ball mill systems of the same production capacity, and the height requirement of the plant is moderate. The weight of each model of the whole machine increases with the specifications, and the manufacturer will provide specific basic load and external dimension drawings for users to plan the factory and lifting plan.
