Liming Heavy Industry LM Vertical Coal Mill Boosts High-Quality Development of Coal Chemical Industry

Coal chemical industry serves as a core approach to realize the clean, efficient utilization and in-depth conversion of coal within the modern industrial system. Taking coal as raw material, it converts coal into gaseous, liquid, solid products or semi-finished products via chemical processing, which are further manufactured into chemical and energy products. Its main processes cover coal gasification, liquefaction, carbonization, tar processing and calcium carbide acetylene chemical engineering. In response to low-carbon development requirements, the industry is advancing industrial transformation and upgrading through carbon reduction at source and process optimization.

Coal powder preparation is a core pre-process for coal-to-gas, coal-to-oil, coal-to-olefin, coal-to-ethylene glycol and coal-to-synthetic ammonia production. It determines the particle size, moisture content and uniformity of furnace-fed coal powder, and directly affects gasification efficiency, carbon conversion rate and long-term stable operation of production facilities. The intelligent and high-efficiency upgrading of pulverizing equipment has become the key for the industry to cut carbon emissions and improve efficiency. Liming Heavy Industry has long been engaged in coal chemical pulverization sector. With professional grinding technologies and systematic solutions, it provides high-efficiency, safe and intelligent core equipment support for the development of coal chemical industry.

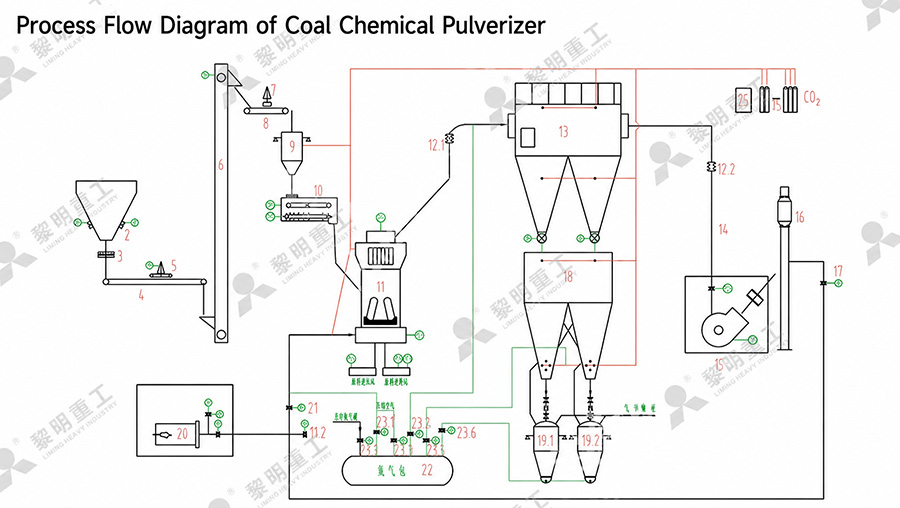

Coal Powder Preparation Process for Coal Chemical Industry

Raw Coal Conveying and Distribution

Raw coal is screened through grid screens from the coal yard, then delivered to steeply inclined belt conveyors or elevators. After iron removal by electromagnetic separators, the raw coal is conveyed into raw coal silos for storage. Once the pulverizing system is fully started, the rod valve at the silo bottom opens and the sealed metering belt feeder runs, feeding raw coal into LM vertical coal mill for drying and grinding.

Coal Grinding and Drying (Core Process)

Hot air or waste flue gas from hot blast furnaces is drawn into the vertical mill by system fans. It conducts sufficient heat exchange with ground raw coal inside the mill, carrying coal powder to the separator for classification. Oversized coarse coal powder falls back onto the grinding disc for re-grinding, while qualified fine coal powder is transported by airflow into explosion-proof bag pulse dust collectors for collection, and then discharged into coal powder silos via star-shaped dischargers.

Coal Powder Collection and Conveying

Impurities in raw coal such as gangue and metal blocks are discharged out of the mill through air rings and slag outlets. A CO-O₂online monitoring system is equipped throughout the whole process. For coal with high volatile matter content, nitrogen protection, automatic CO₂fire extinguishing system and other safety devices can be configured.

Selection Advantages of Coal Mill Equipment

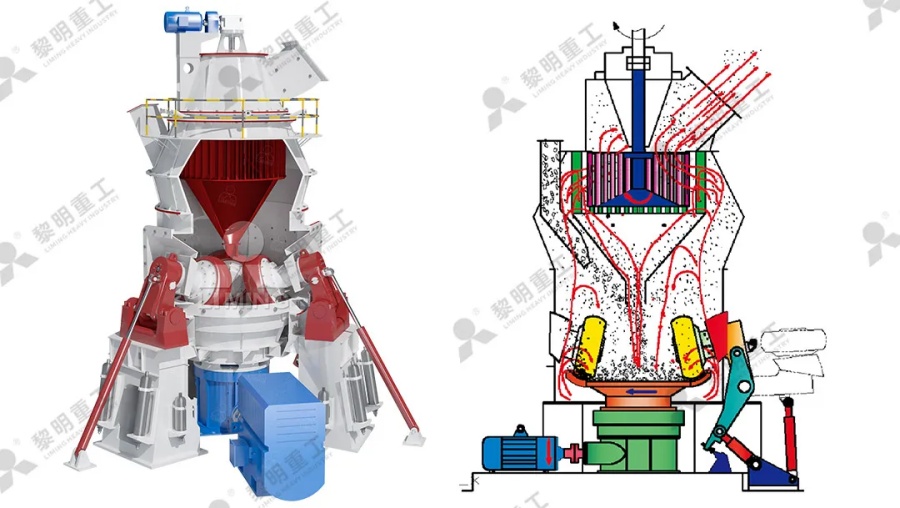

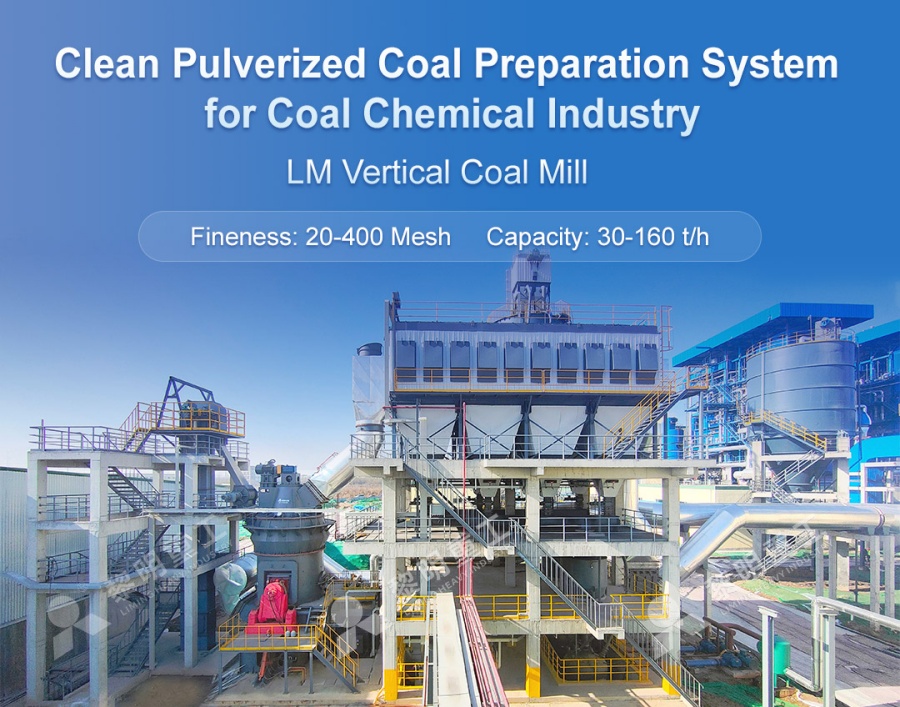

To meet the raw coal pulverization demands of the coal chemical industry, Liming Heavy Industry has launched LM Vertical Coal Mill. This equipment integrates crushing, grinding, drying, powder separation and conveying into one unit, and adopts the one-step pulverization technology combining drying and grinding, which greatly improves production efficiency. It is equipped with innovative five-level explosion-proof measures to build a full-coverage, whole-process and all-round fire and explosion prevention system, providing comprehensive guarantee for safe and stable system operation, making it the ideal preferred coal powder preparation equipment for the coal chemical industry.

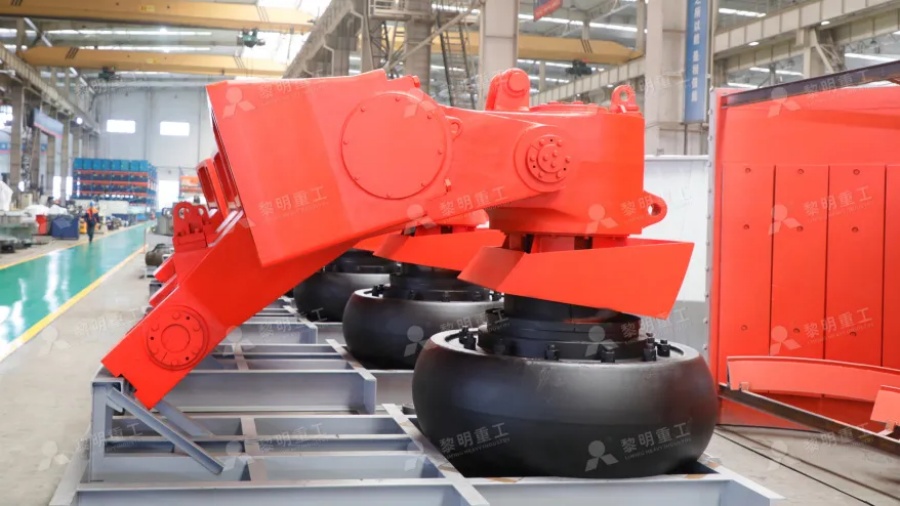

Advanced Design of Grinding Roller and Grinding Disc

The roller sleeves and disc liners are made of special wear-resistant materials. The grinding roller bearings adopt forced thin oil lubrication with independent oil stations. Equipped with hydraulic control system, the grinding rollers can be fully turned out of the mill, offering ample space for maintenance.

High Grinding Efficiency & Low Energy Consumption

It saves 40% to 50% power consumption compared with ball mills. Featuring large-diameter grinding rollers with large grinding area and automatic hydraulic pressurizing device, it delivers superior pulverization performance.

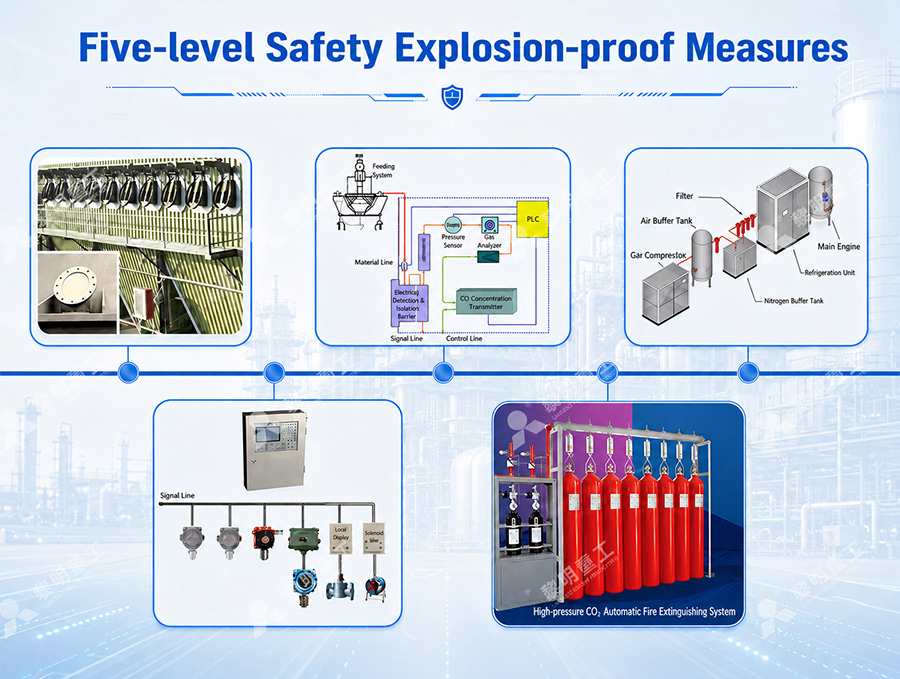

Five-level Explosion-proof Safety Design

The system is fitted with CO-O₂online monitoring, automatic CO₂fire extinguishing system and other five-level safety explosion-proof configurations, ensuring reliable operational safety.

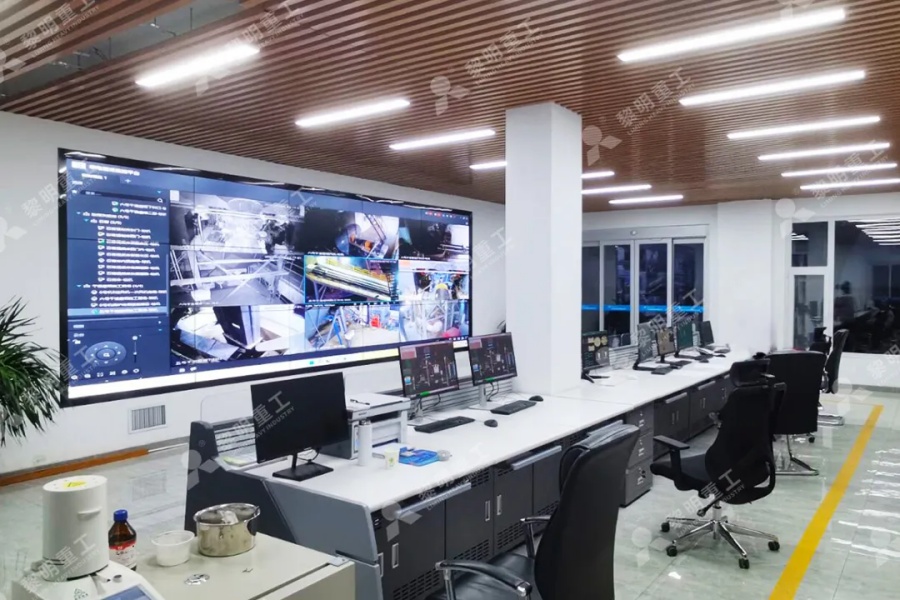

High Degree of Automation

Adopting intelligent automatic control system, it supports remote operation, interlock protection, real-time monitoring and fault alarm, which simplifies daily operation effectively.

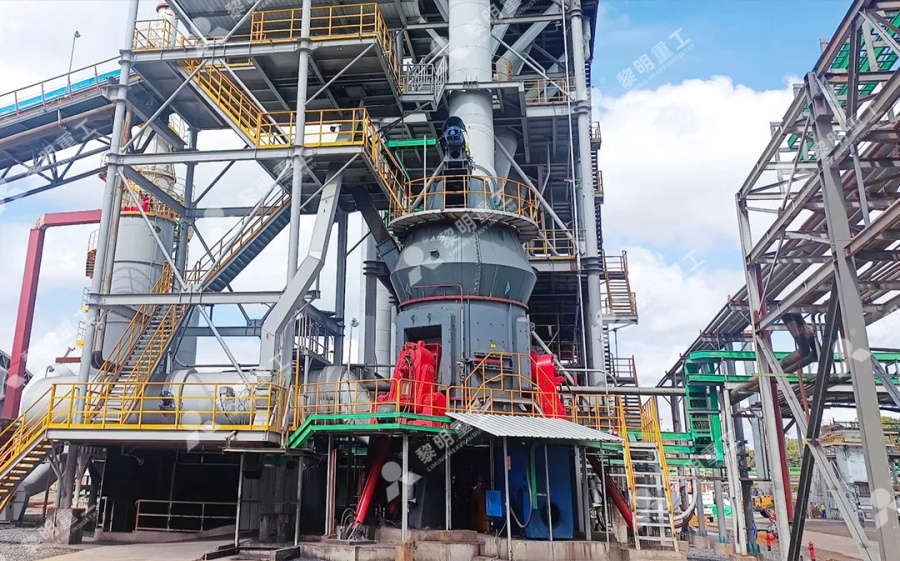

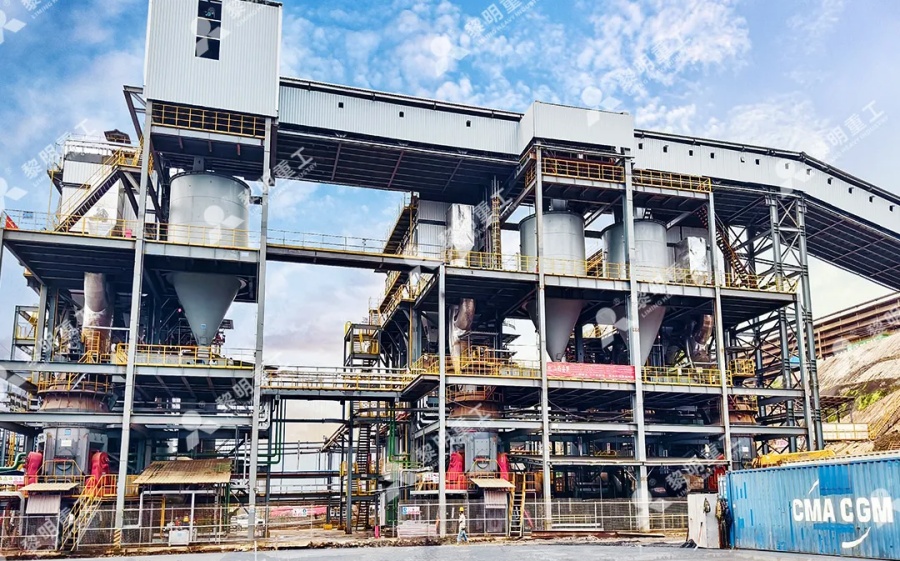

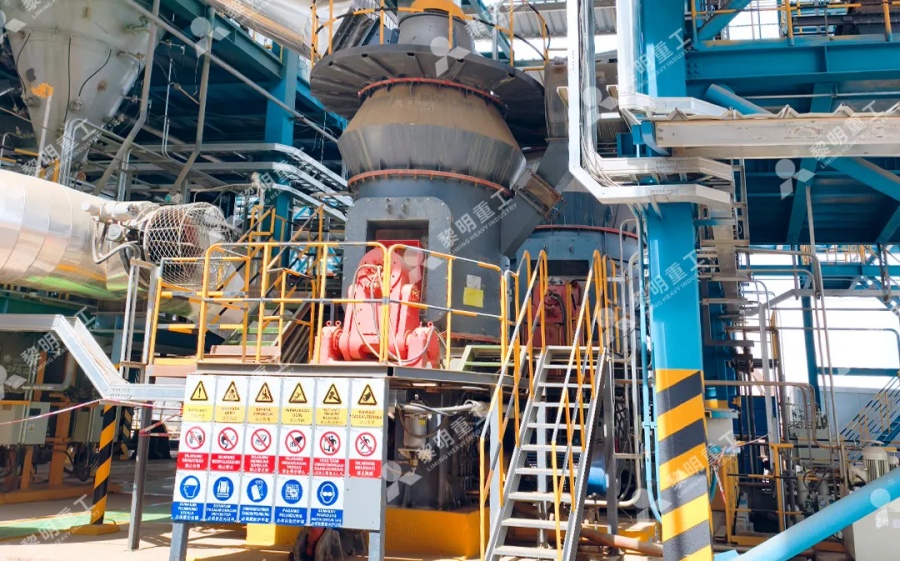

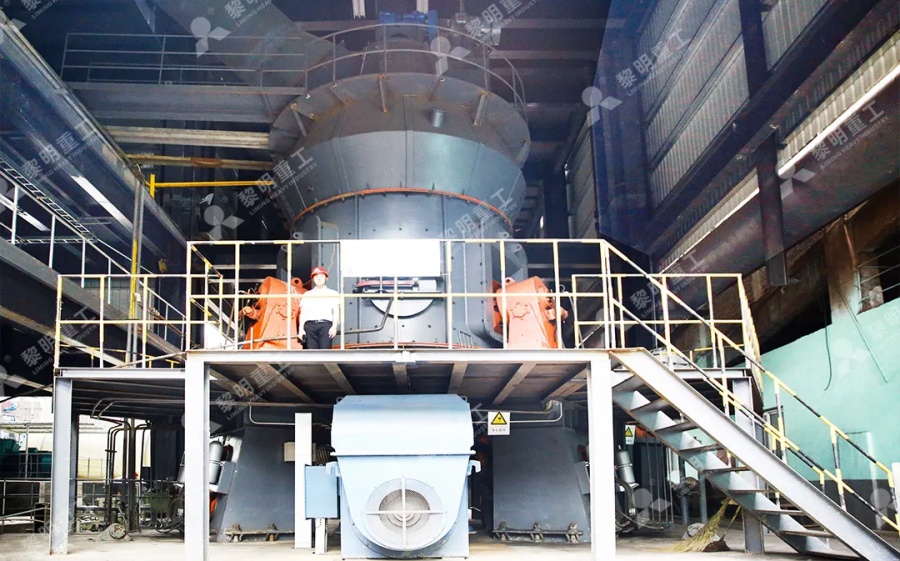

Application of LM Vertical Coal Mill Projects

Having been deeply engaged in coal chemical pulverization for years, Liming Heavy Industry LM Vertical Coal Mill features high efficiency, energy conservation, intelligence and high safety. It satisfies raw coal pulverization requirements of various coal types and working conditions, and has built numerous benchmark production lines in the coal grinding market, winning wide recognition from customers. We are capable of providing one-stop customized solutions according to actual project demands.

As a pioneer in grinding equipment technology, systematic solutions and services for global new powder materials, mineral powder processing and resource recycling industries, Liming Heavy Industry has specialized in the grinding sector for nearly four decades and owns more than 280 national patents. The company has taken the lead in obtaining ISO9001 international quality system certification, EU CE certification and EAC CU-TR certification. Committed to continuous technological innovation in coal chemical pulverization, we supply reliable equipment and systematic solutions for clients worldwide.
